RS-901A Auto Radial Lead Cutting Machine Varistor Pin Trimming Machine With Feeder Bowl

Name: RS901A Auto Radial Lead Cutting Machine Varistor Pin Trimming Machine With Feeder Bowl
Brand: RKENS
Price: 1 USD

Brand Name : RKENS

Model Number : RS-901A

Place of Origin : China

MOQ : 1SET

Payment Terms : T/T, Paypal,Western Union

Delivery Time : 3-5 days

Packaging Details : Carton box or Wooden case

Name : Radial Varistor lead cutting machine

Usage : Cut Radial lead, such as LED, capacitor

Type : Full Automatic

Power supply : 220V/110V 50HZ/60HZ

Contact Now

RS-901A Auto Radial Lead Cutting Machine Varistor Pin Trimming Machine With Feeder Bowl

Intro:

The vibration bowl feeder works for varistors. Also we can customize feeders for other radial components, E-caps, film capacitors, LED, inductor and more.

The vibration bowl and cutter can work together or seprately. One cutter machine can work with several feeder bowls.

Cutting length can be adjustable. It can cut leads shortest to 2.8mm. For more shorter length, we can customize machine.

Machine video: https://youtube.com/shorts/DKEJnZ7cwJI?feature=share

Suitable:

The machine is suitable for cutting loose radial components,such as capacitor,LED, triode,inductor,etc.

Cutter and vibration bowl can work together or separately. Cutter can work for various radial components.

Feeder bowl is customized according to components.

Lead Cutting Machine Specification:

Model	RS-901A
Name	Auto Vibration Bowl Feeder Varistor Lead Cutting Machine
Voltage	AC 220V/110V 50hz 60Hz
Size	1050 x 1100 x 650mm
Weight	125KG
Efficiency	6000-8000 PCS/H
Package	Wooden case, 125KG

Features:

1.It is suitable for cutting radial parts of bulk radial components, which is suitable for mass production and saves manpower.

2.Special cutting method, the use of Japanese steel imports of knives, long life, easy adjustment.

3.The cutting foot is of high precision and can be cut to 2.5mm at minimum

4.The controller adopts Japanese electronic component, with long service life and stable feeding.

5.Motors and electrical parts are all from Taiwan.

6.Electric and air combination, good feeding effect, fast speed.

7.It is used in combination with the feeding tray, and can be used separately.

8.The body and feeding plate are split double positioning mode, which can avoid collision at the interface.

9. Feeding plate vibration spring plate adopts imported fiber board, long life, not easy to break, aging.

10.The feeding tray is used for the purposes of film capacitors. Can be customized for E-caps, LED, inductor, etc

Cutting Samples

RS-901A Auto Radial Lead Cutting Machine Varistor Pin Trimming Machine With Feeder Bowl

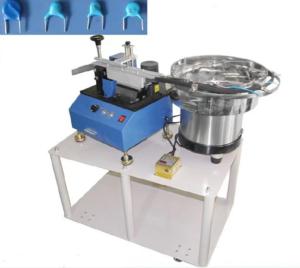

Machine picture

RS-901A Auto Radial Lead Cutting Machine Varistor Pin Trimming Machine With Feeder Bowl

RS-901A Auto Radial Lead Cutting Machine Varistor Pin Trimming Machine With Feeder Bowl Images
