RS-907AU Resistor&Diode Lead Cutting And Forming Machine

Name: RS907AU ResistorampDiode Lead Cutting And Forming Machine
Brand: RKENS
Price: 1 USD

Quality RS-907AU Resistor&Diode Lead Cutting And Forming Machine for sale

Brand Name : RKENS

Model Number : RS-907AU

Place of Origin : China

MOQ : 1set

Payment Terms : T/T

Supply Ability : 300sets per month

Delivery Time : 7-10 days

Packaging Details : wooden case

Name : RS-907AU Resistor&Diode Lead Cutting And Forming Machine

Usage : Cutting and U shape Forming

Suitable for : taped or loose resistor and diode

Lead diameter : 0.5-0.8MM or 1.0-1.3MM

Contact Now

Automatic loose/taped axial diode/resistor lead forming kinking machine RS-907A

Intro:

This axial lead forming machine is used to cut, form and kink taped/loose resistor and diode. It can cut only, or cut and bend, or cut bend and kink. It works for 0.5-0.8MM lead or 1.0-1.3MM lead, different leads can not share same machine.

Suitable:

Taped or loose axial components lead forming, such as resistor, diode

Function: Cut, bend, kink

Available lead diameter: 0.5-0.8MM or 1.0-1.3MM lead

When kink, for one machine, kink-height is not adjustable.

Specification:

Model	RS-907A
Suitable for	taped resistor/diode axial components. Lead diameter: 0.5-0.8MM or 1.0-1.3MM Note: Two lead size can not use same machine
Feature	Cutting, Forming, Kinking. U, F, U-K, F-K. Can customize forming die
Voltage	220V 50HZ/60HZ
Weight	150KG
Efficiency	3600-4500PCS/H

Features:

1. For tape diode/resstor. Cut only, Cut and Form, Or cut form kink.

2. Independent rotary disc cutters for longer cutting life, material SKD-11

3. Won 't score of damage lead of diodes and resistor

4.The production capacity is 3600-4500PCS/H .high performance motor with adjustable speed

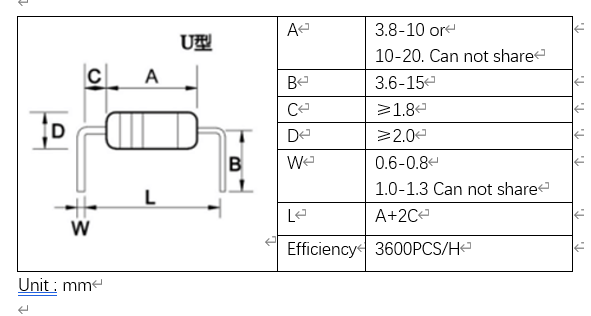

Cutting and forming size

RS-907AU Resistor&Diode Lead Cutting And Forming Machine

RS-907AU without feeder bowl.

RS-907AU Resistor&Diode Lead Cutting And Forming Machine

RS-907AU Resistor&Diode Lead Cutting And Forming Machine Images
